Movable Glass Partition System

Designed and built to satisfy the requirements of the most demanding designer, it features an extremely large number of items and possible design solutions for tempered glass ot tempered laminated glass installations.
The interchangeable covers that determine its aesthetic aspect are available in all materials: anodised aluminium in a wide array of colours, brass and stainless steel polished or satin finish. Thanks to a high modularity system, the bodies of some items may vary their function many folds.
Can carry out as many as 32 functionsin the most extreme of cases.
The applications referring to the thickness of the glass are numerous as well, and in some unique cases, 10/12/15/19 mm..
In the event of higher values, we recommend to consult our sales office.

The range of items also includes offset fittings for single acting doors and complete solutions for arched doors,a complete set of interior doors hinges and locks and massive stainless steel hinges for monumental doors .

Types of Product

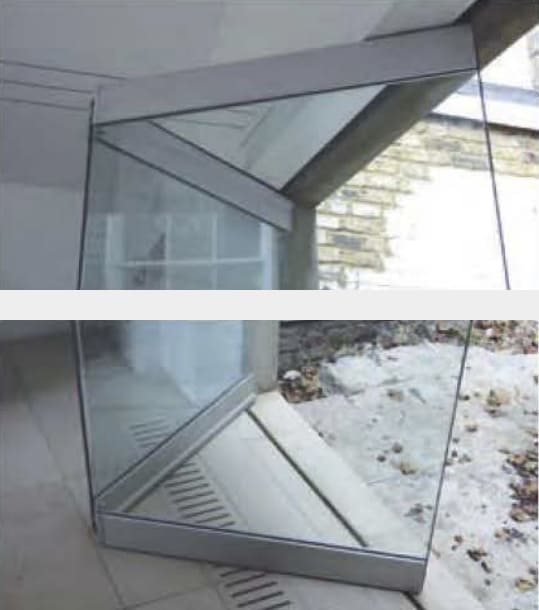

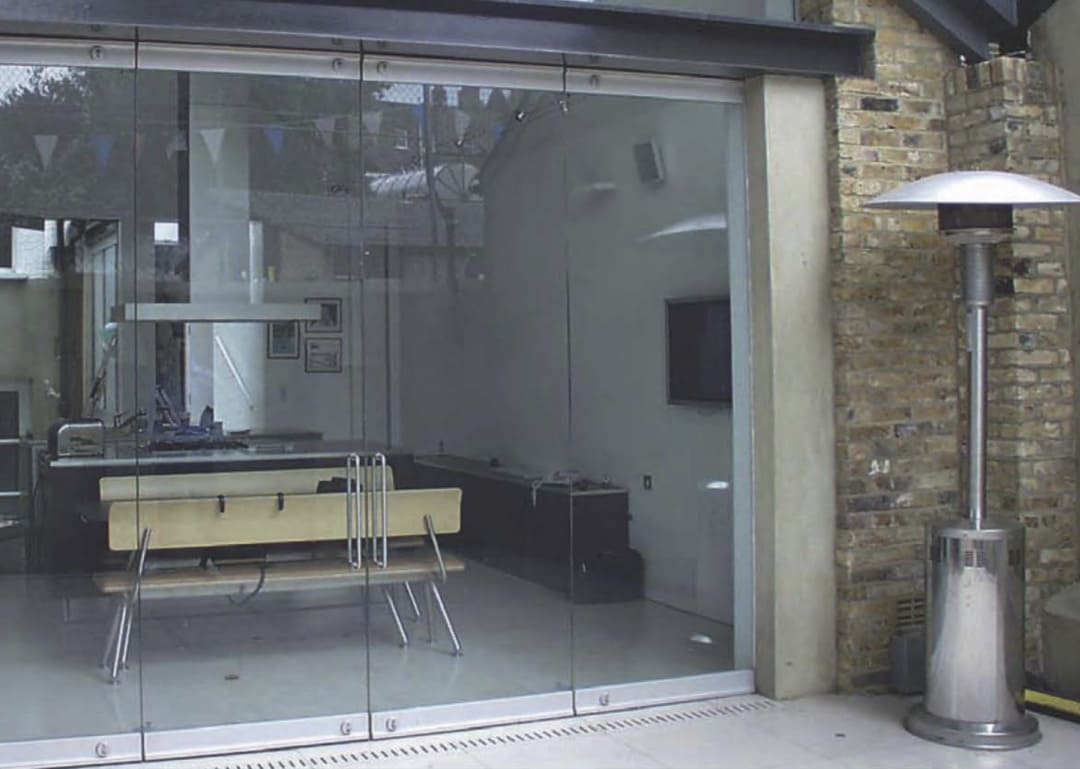

Invisible Connection System

It is an innovative hardware system for frameless glass-folding doors exclusively equipped with patch fittings.

The system hangs and slides in a top-mounted track and the wings are aligned in a aluminium profile hidden in the floor.

All the hardware is available in aluminium.

The maximum number of wings is 12 for a total opening of 12000 mm i.e. 6 wings on each side.

  • Glass thickness: 8 – 10 – 10 + 10mm

  • Maximum wing dimensions: 1000x3000 (WxH)

  • Maximum allowed wing weight: 75kg

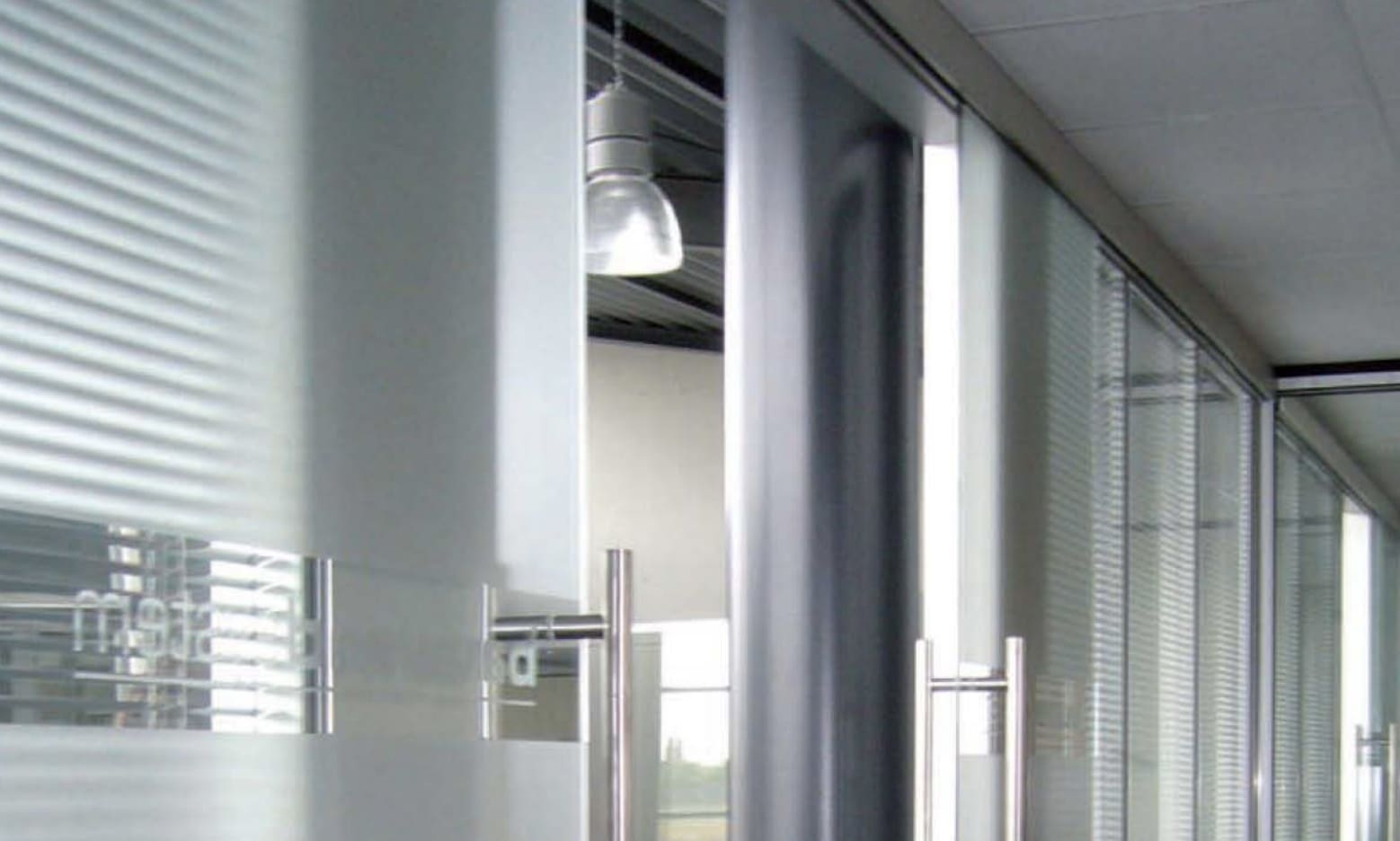

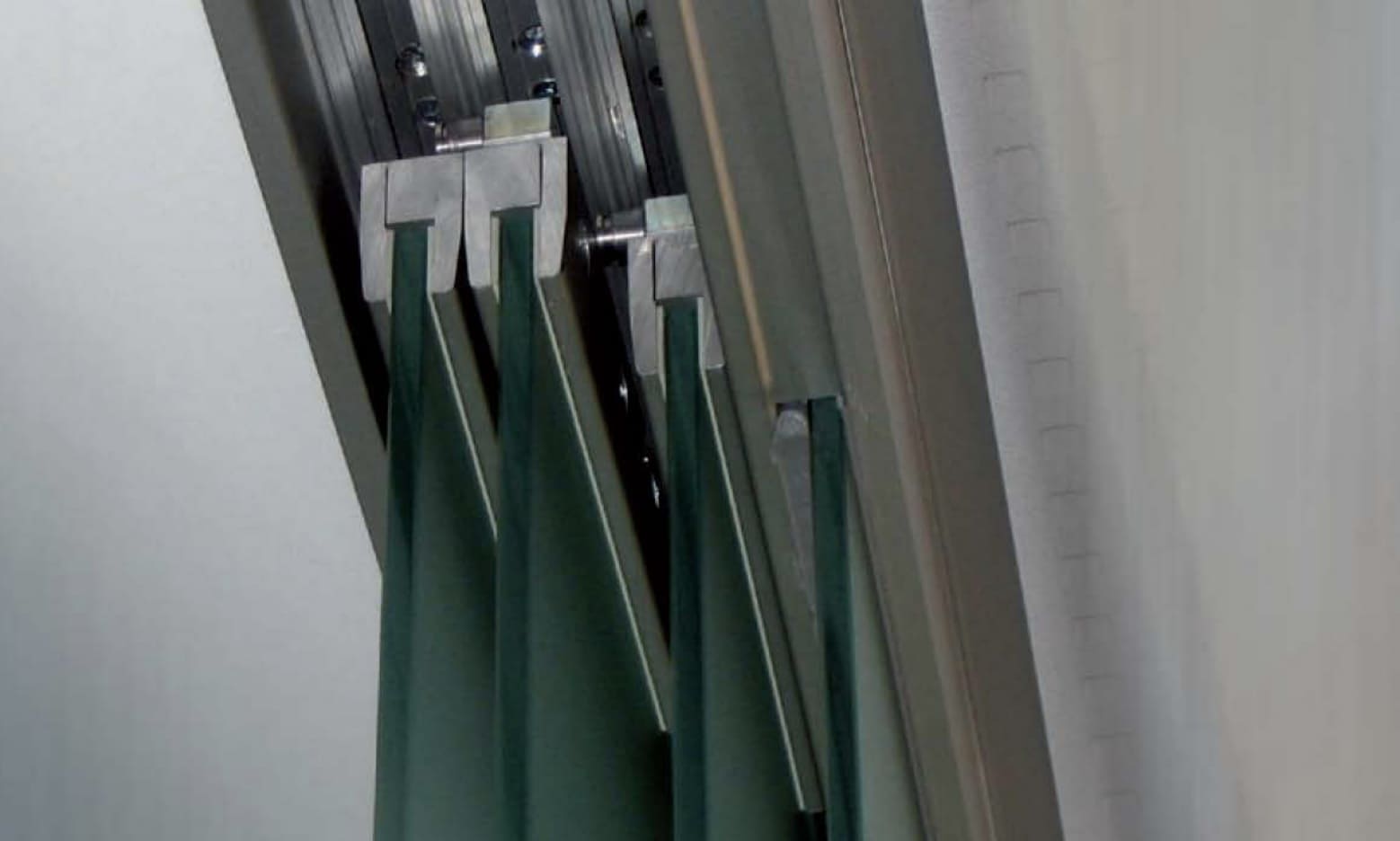

Variant System

It's a multiple rail hung sliding glass door system. A unique solution, thanks to the variety of accessories and possibilities. Up to 4 sliding wings and 1 fixed panel, with no need for glass notches if you use the guide embedded into the floor. In case you use the bottom glass-to-glass guide, a notch is required. The coupling system, available upon request, enables the movement of all wings, by simply operating the first.

  • Standard kit, without coupling system, can support 150kg per wing, the kit with coupling system 100kg

  • Minimum wing width wing: 550mm

  • Glass thickness: 8 – 10 – 12mm

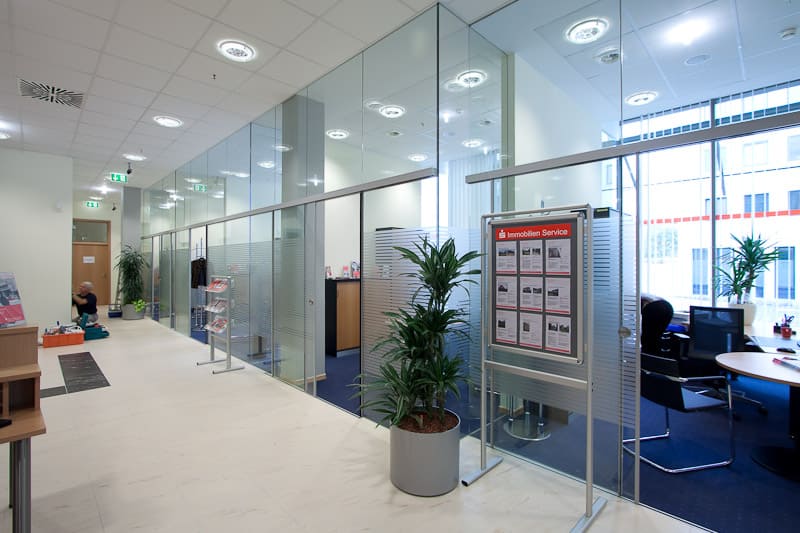

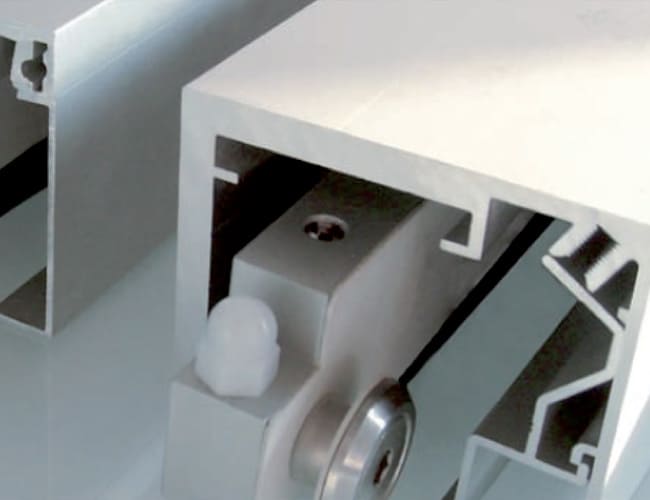

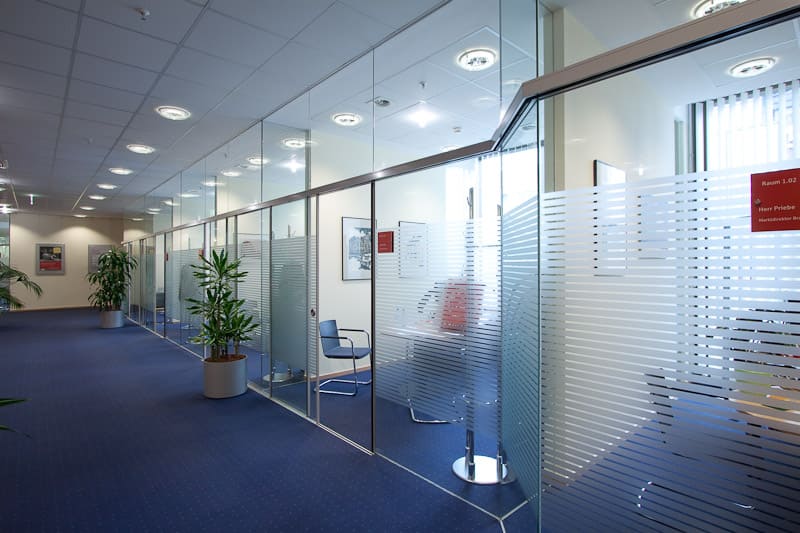

Pico System

PICO is a further evolution in the glass sliding system product range. The upper track of PICO is available in two different versions with and without side fixed panel.

The set of clamps and stoppers are very small and totally hidden in the upper track.

Pico is an ideal solution for false ceiling installation.In fact the glass panel can be easily hung and adjusted from below the false ceiling level.

Glass cut outs are required to assure maximum security.

  • Glass thickness: 8 – 10 – 12mm

  • Maximum wing weight: 150kg

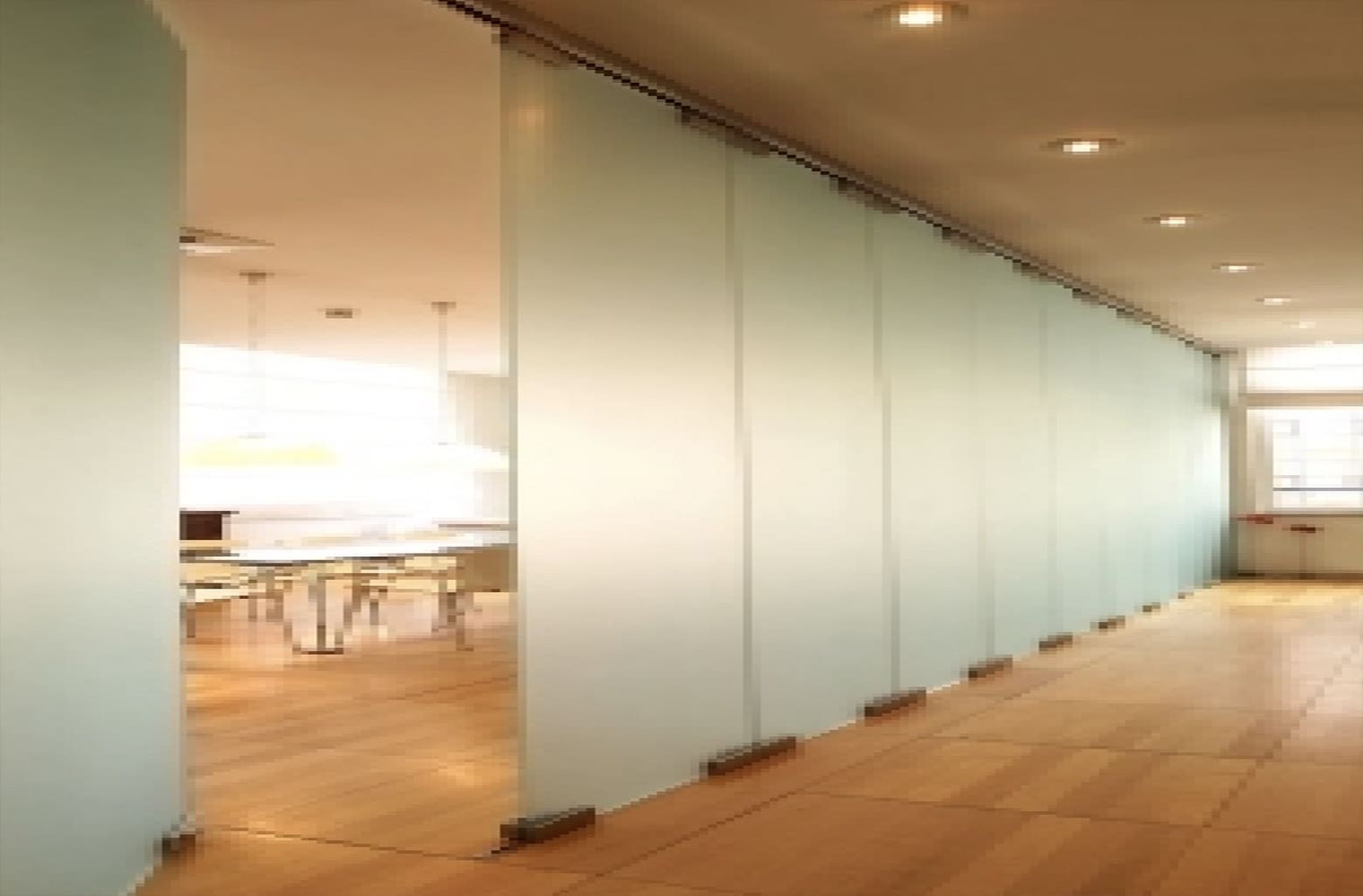

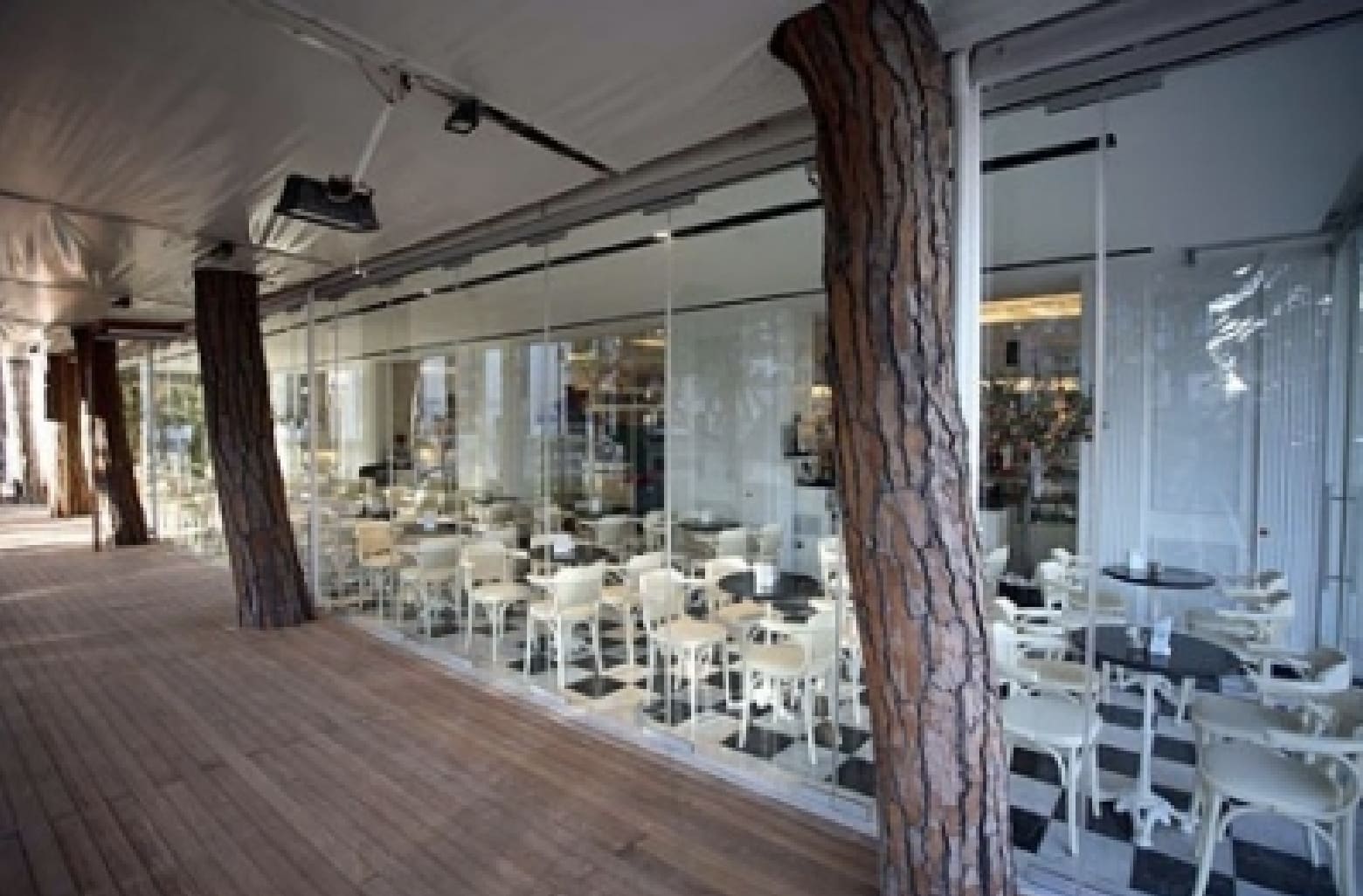

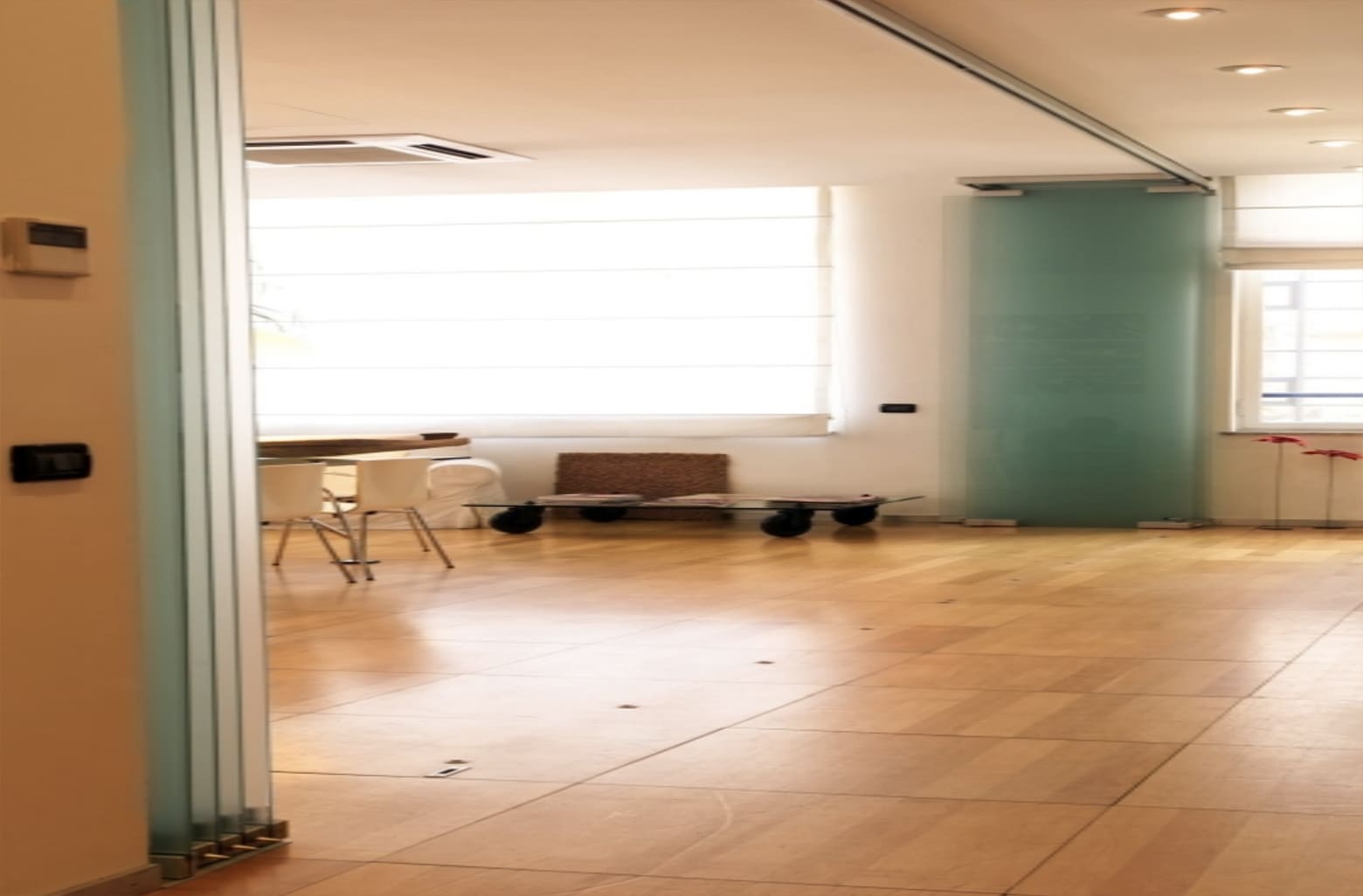

Junior System

The independent wing system slides inside a top mounted track. The wings are then stacked away in specially designed parking bays, which are parallel or perpendicular to the sliding tracks.

The system allows for an unlimited number of wings and the possibility of segmented installation with very low curve radii.

Thanks to the use of a patch fittings system with small interchangeable covers, extremely light glass surfaces can be created with the possibility of choosing between aluminium and stainless steel finishes.

Junior 700 adds to the Junior system the power clamping of the rails that raise up to 100kg the maximum weight allowed.

The Junior 800 further more enlarge the solution possibilities at total height installations up to 1500×4000 (WxH) glass wing dimensions in other words 180kg as maximum weight aloowed.

  • Glass thickness: 10 – 12 – 12.76mm

  • Maximum wing dimensions: 1000mm X 3000mm (WxH)

  • Maximum allowed wing weight: 85kg
