Automatic Sliding Door System

The well-proven double and single-leaf classic sliding doors from record are at the heart of the product range, and are suitable for almost any application. The modular drive and profile systems guarantee a reliable and low-noise operation over long periods. The specification of these already perfectly designed doors with their elegant appearance can be varied according to customer requirements with regard to security, performance and convenience. Depending on the requirements, narrow, standard or robust glass profiles are used for the glass doors, and all models can be equipped with escape route safety systems.

We have been designing, developing, building, selling, installing and maintaining automatic door systems for over 60 years. During this length of time, we have accumulated a wealth of knowledge, from which, in turn, a wealth of solutions can be derived. Our automatic door systems reflect this knowledge in all its facets, and results in a wide range of models capable of fulfilling the requirements of practically any entrance.

Types of Product

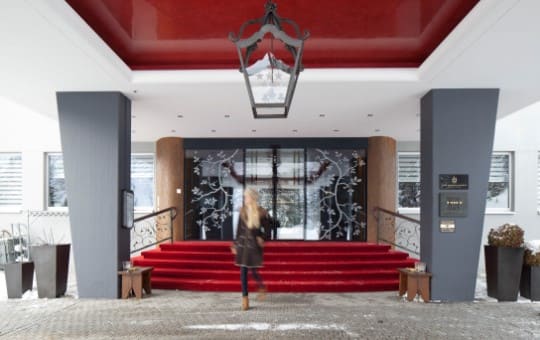

STA 20 - Classic linear sliding door

The well-proven double and single-leaf classic sliding doors from record are at the very center of the product range, and are suitable for almost any application. The modular drive and profile systems guarantee a reliable and low-noise operation over long periods. The perfectly designed doors with their elegant appearance can be expanded according to customer requirements with regard to security, performance and convenience. Depending on the requirements, narrow, standard or robust glass profiles are used for the glass doors, and all models can be equipped with escape route safety systems.

Our classic single or double leaf sliding doors can be found where automatic doors are usually fitted. They have opening widths of 800 to 3 000 mm and can accommodate door weights of up to 1 x 200 or 2 x 150 kilos.

Features

The record system 20 enables the construction of a vast range of door models. Designed using modular construction principles, it can be adapted to suit the widest range of conditions and yet is largely based on the same components. This shortens installation time and reduces service and maintenance costs.

The record system 20 fulfils 2006 / 42 /  EG industrial guidelines for machines, DIN 18650 as well as meeting all relevant national and international norms and standards.

Design

For the record system 20, there are 20 mm thick aluminium profiles available for 10 mm thick single glazed leaves, or 32 mm thick profiles suitable for 24 mm thick insulating glass to allow the greatest possible transparency. Even profiles of other manufacturers up to 65 mm can be fitted. Both profiles and drive unit cover can be anodized or powder-coated.

Drive unit heights for both the normal, DUO and RED versions are available in either 108 mm or 150 mm; 200 mm for the reinforced models.

The drive unit can be fitted to the lintel, freestanding or integrated in the ceiling.


Mechanics

The absence of noise is the most striking feature of record automatic doors. Our combination of short, low-momentum toothed belts, rollers made from hard-wearing, low-noise plastic, acoustically decoupled running tracks, guide pulley wheels with ball bearings and door leaf guides with specially developed guide profiles all contribute to an exceptionally quiet running door.

Our efforts to produce the quietest automatic doors possible can also be seen in their operation. They open and close exceptionally quietly, which is indicative of the highest precision and the perfect matching of materials; this precision engineering can also be seen in the harmonious sequence of door leaf movements.


Electronics

The record system 20 components can communicate with one another interactively, which, among other things, enhances safety and security. The ability of drive, sensors and remote to communicate enables continuous monitoring of component status. The operational status of the door system and its individual electronic components also continuously undergo plausibility checks. Thanks to its learning capacity, the potential of the unit to malfunction is reduced to a minimum.

STA 20-200 - Door operator for heavy sliding doors

?>?

STA 22 - Door for special heavy duty applications

The robust STA 22 automatic door is particularly suitable for special entrances and applications using heavy door leaves. Operator technology is particularly stable and reliable and has maintained its position successfully in the market for many years. The STA 22 automatic sliding door is the ideal solution for special heavy duty applications.

Our classic single or double leaf sliding doors can be found where automatic doors are usually fitted. They have opening widths of 800 to 3 000 mm and can accommodate door weights of up to 1 x 250 or 2 x 200 kilos.

Features

The record system 20 enables the construction of a vast range of door models. Designed using modular construction principles, it can be adapted to suit the widest range of conditions and yet is largely based on the same components. This shortens installation time and reduces service and maintenance costs.

The record system 20 fulfils 2006 / 42 /  EG industrial guidelines for machines, DIN 18650 as well as meeting all relevant national and international norms and standards.

Design

For the record system 20, there are 20 mm thick aluminium profiles available for 10 mm thick single glazed leaves, or 32 mm thick profiles suitable for 24 mm thick insulating glass to allow the greatest possible transparency. Even profiles of other manufacturers up to 65 mm can be fitted. Both profiles and drive unit cover can be anodized or powder-coated.

Drive unit heights for both the DUO and RED versions are available in 200 mm.

The drive unit can be fitted to the lintel, freestanding or integrated in the ceiling.


Mechanics

The absence of noise is the most striking feature of record automatic doors. Our combination of short, low-momentum toothed belts, rollers made from hard-wearing, low-noise plastic, acoustically decoupled running tracks, guide pulley wheels with ball bearings and door leaf guides with specially developed guide profiles all contribute to an exceptionally quiet running door.

Our efforts to produce the quietest automatic doors possible can also be seen in their operation. They open and close exceptionally quietly, which is indicative of the highest precision and the perfect matching of materials; this precision engineering can also be seen in the harmonious sequence of door leaf movements.


Electronics

The record system 20 components can communicate with one another interactively, which, among other things, enhances safety and security. The ability of drive, sensors and remote to communicate enables continuous monitoring of component status. The operational status of the door system and its individual electronic components also continuously undergo plausibility checks. Thanks to its learning capacity, the potential of the unit to malfunction is reduced to a minimum.

ECdrive - Automatic linear sliding door system for doors up to 140 kg leaf weight

Automatic linear sliding door system for doors up to 140 kg leaf weight

With its slim design, the new ECdrive T2 guarantees new design possibilities and an outstanding price-performance ratio. When used in combination with thermally separated profile systems, energy efficiency can be increased. GEZE Cockpit networks this drive system thus creating smart solutions.

Application Areas


  • Single and double leaf sliding door systems

  • Interior and exterior doors with high access frequency

  • All-in-one solution for entrance areas with GCprofile Therm and fanlight

  • If extra impermeability or energy efficiency are needed

  • Opening widths from 700 to 3000 mm possible

  • Door leaf weight of up to 140 kg per leaf

  • Suitable profile systems are fine-framed profile systems with ISO and mono glass, GCprofile Therm, ESG clamping profile, on-site frame and wooden leaves

Powerdrive - Automatic linear sliding door system for large and heavy doors of up to 200 kg leaf weight

Automatic linear sliding door system for large and heavy doors of up to 200 kg leaf weight

Very powerful drive for large, heavy leaves and wide opening widths. Can be networked via CAN bus and integrated into building technology management systems. Independent error recognition and recording. Adjustment options for all door movement parameters. Freely configurable inputs and outputs for different functions. Integrated battery for emergency opening and closing in the event of a power failure

Application Areas


  • Single and double leaf sliding door systems

  • Interior and exterior doors with high access frequency

  • Opening widths from 700 to 3000 mm possible

  • Door leaf weights up to 200 kg per leaf

  • Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass clamping profile, on-site frame and wooden leaves

  • Suitable for different profile systems
